Tension Jack Series

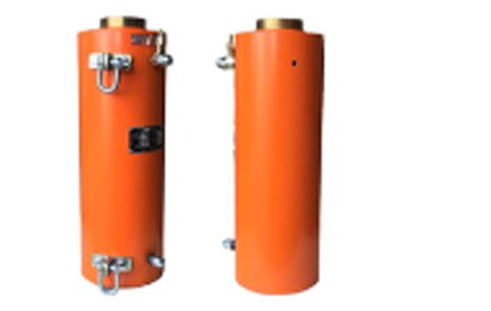

YDC Series Center Hole Jack

Reference picture

Product Name:

General Tension jack

Basic Description:

It is generally a center hole structure, and its main includes a tension cylin- der, a piston, and an oil chamber.

Application:

Cooperate with ordinary tensioning oil pump to achieve overall tensioning of anchors, mainly used for tensioning of prestressed components in bridges and hydropower projects, etc.

Reference picture

Click here Download

Product Name:

Intelligent tension jack

Basic Description:

The structure has one more smart sensor than the general tension jack, and the others are almost the same.

Application:

It mainly cooperates with intelligent tension- ing oil pump equipment to achieve precise control and high-efficiency synchronous ten- sioning, mainly used for tensioning of pre- stressed components in bridges and hydro- power projects, etc.

---

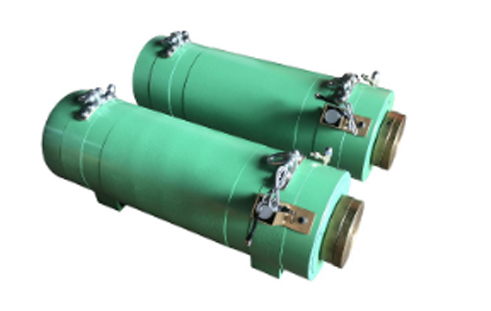

YDT Series increme lauching jack

Reference picture

Click here Download

Product Name:

Incremental Launching Jack

Basic Description:

YDT series of large-tonnage pedestal hydraulic tension jack, the ejection stroke is 200mm, 400mm, 600mm, 800mm, 1000mm, etc., which can be customized according to customer needs.

Application:

The jack is mainly used for the integral tension of the pre-tensioning method or the incremental launching and jacking of box culverts.

---

YDT Series incremental lifting Jack

Reference picture

Click here Download

Product Name:

Lifting jack

Basic Description:

YDT series of large-tonnage pedestal hydraulic tension jack, the ejection stroke is 200mm, 400mm, 600mm, 800mm, 1000mm, etc., which can be customized according to customer needs.

Application:

YDT series of large-tonnage pedestal hydraulic tension jack, the ejection stroke is 200mm, 400mm, 600mm, 800mm, 1000mm, etc., which can be customized

---

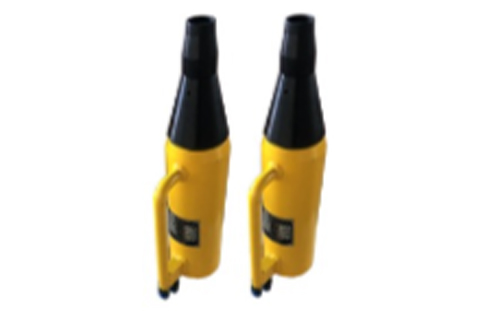

YDT Series Front Clamping Jack:

Reference picture

Click here Download

Product Name:

25T Font Clamping jack (Mono Strand jack)

Basic Description:

The front cassette jack is mainly used for single-hole tensioning. It can also be used for multi-hole pre-tensioning, tensioning and obstacle removal, and can be applied to high-strength steel wire bundles and steel strands of various specifications and sizes(12.7,015.24).

Application:

The jack is small in size, light in weight and high in efficiency. Especially suitable for high-altitude or small space operations.

---
